Description
MSV-B OBD MEMORY SAVER WITH INTEGRATED BATTERY includes:

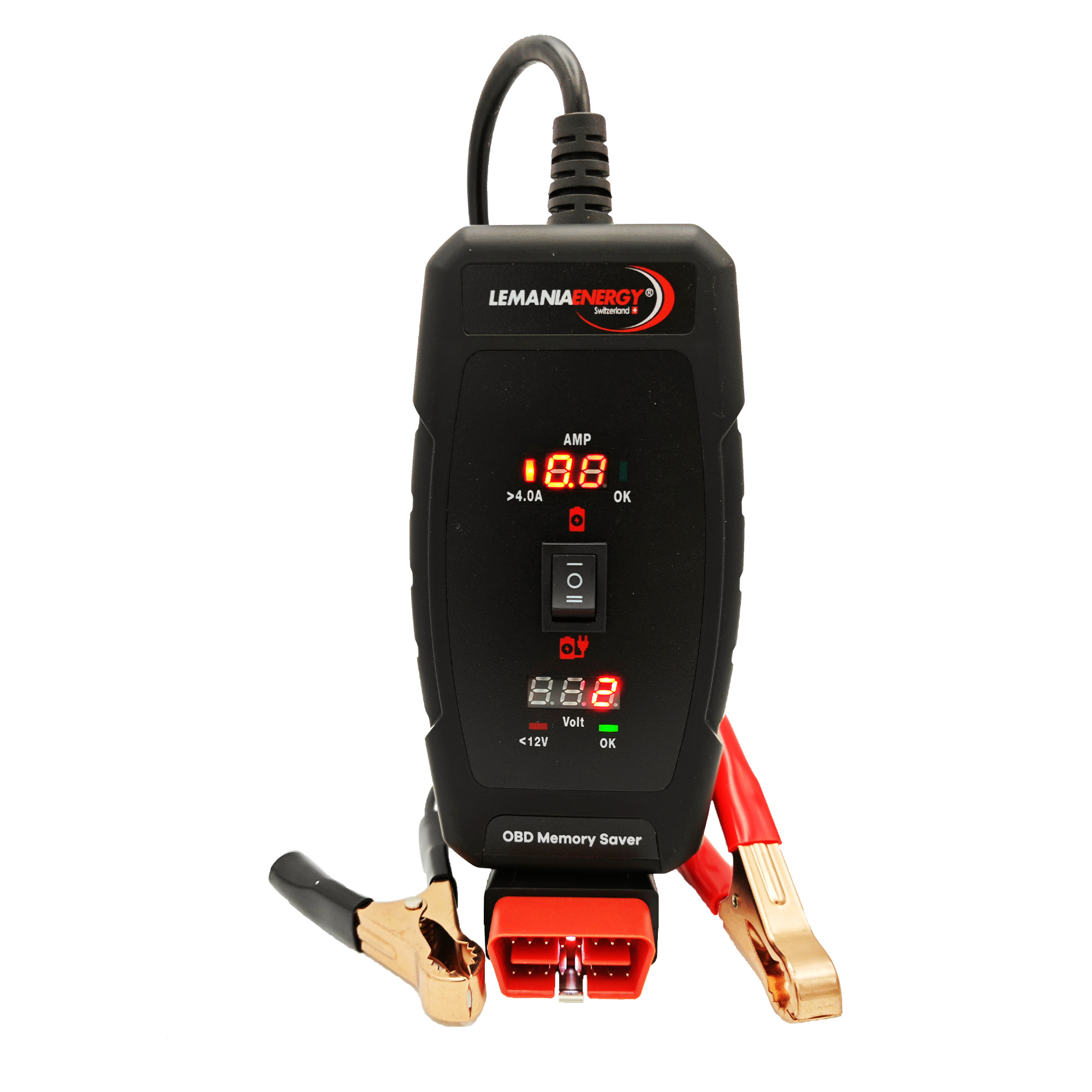

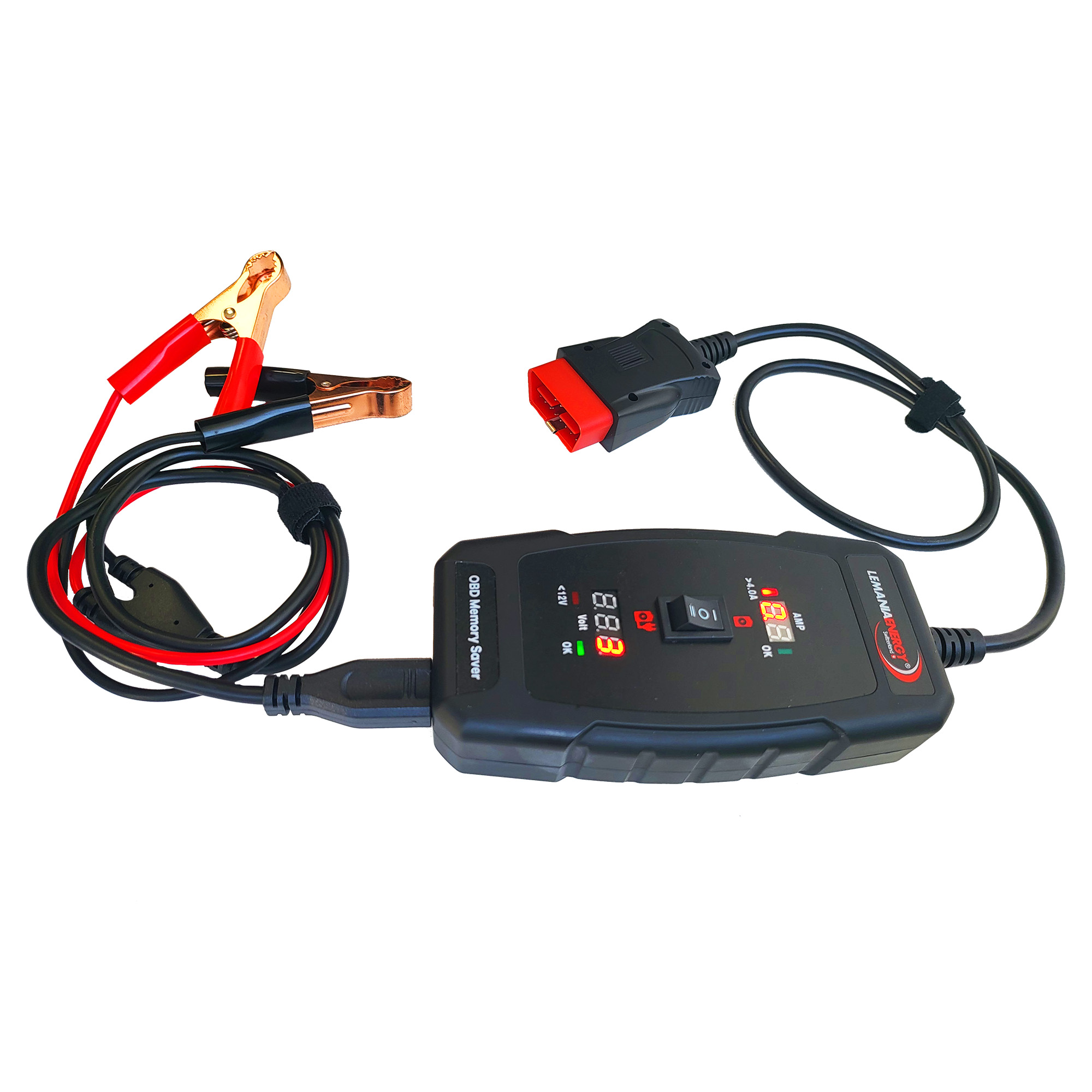

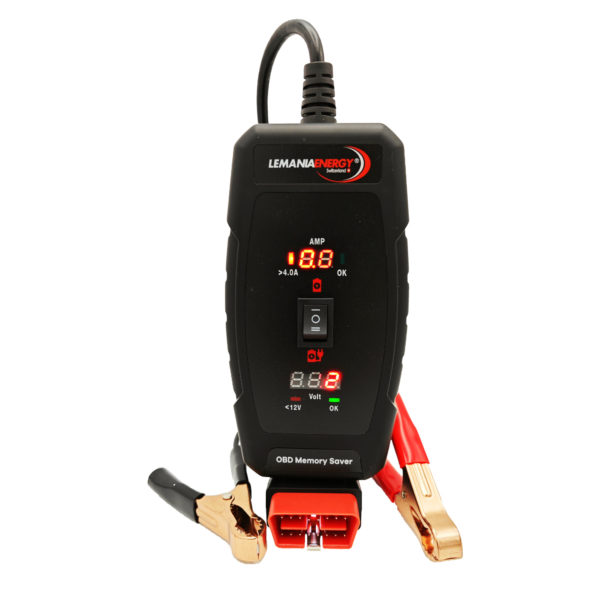

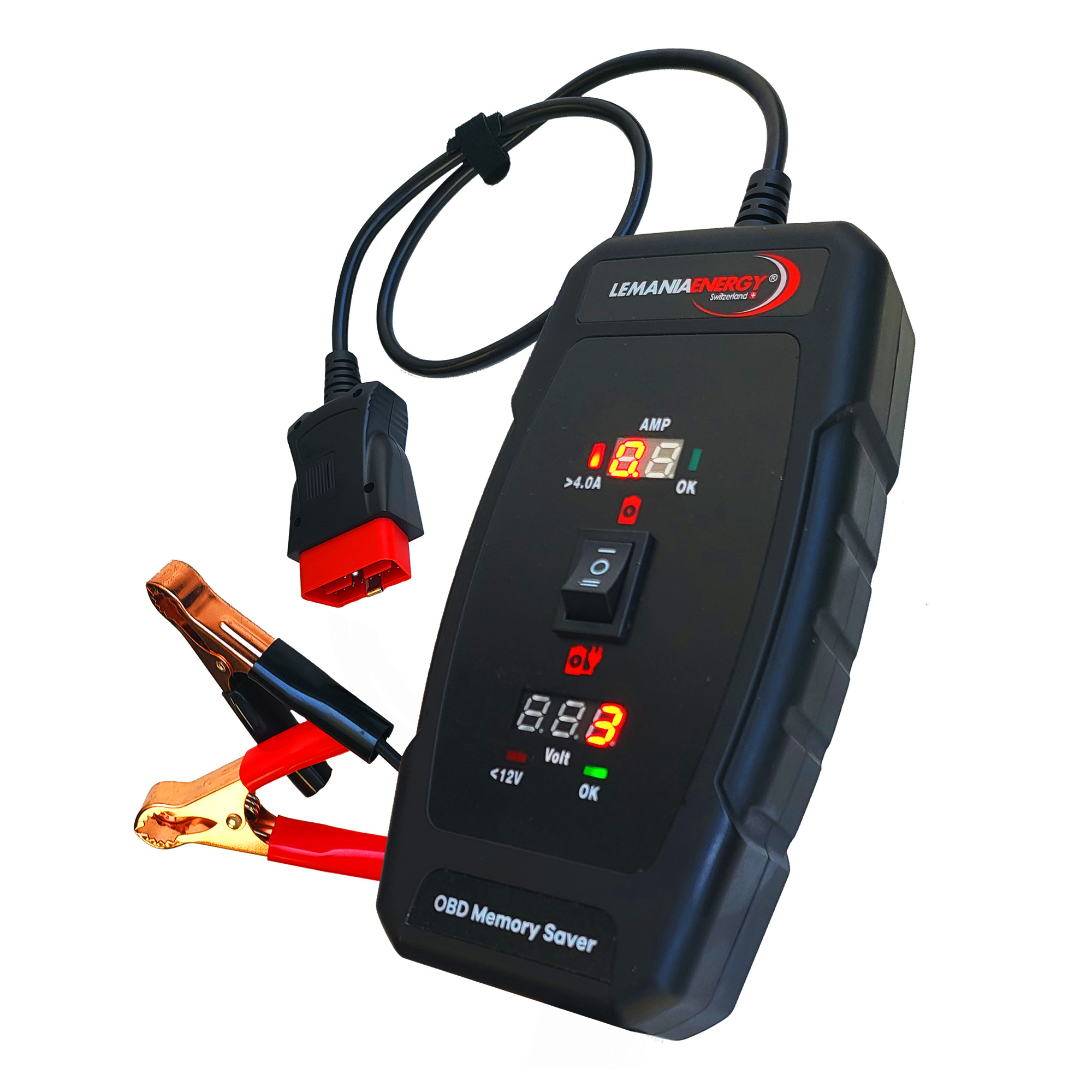

The MSV OBD Memory Saver is the ultimate tool to depend on during vehicle battery replacements. Safely bridge the connections between an external battery or power source and the ECU using either the cigar plug or clamp attachments and OBD cable. This quick two step process prevents the loss of ECU memory such as seat position, multimedia codes, ECU fault codes and learned engine configurations during battery replacement. Never lose a setting again with the MSV OBDII Memory Saver!
Model |
Operating voltage |
Amps draw detection |
Internal power source |
Li-Ion charger |
DIMENSIONS |
WEIGHT |
Vehicle Types |
|
|
9.0 VDC ~ 15.0 VDC (max) |
Over 4.0 Amps will be depicted as |
Re-chargeable 12 VDC |
Input: AC 100 V ~ 240 V, 50/60 Hz |
15.6×8.1×4.4 |
520g (with clamps |
|
| Feature | Details |
|---|---|
| Model | OBD MSV-B |
| Operating Voltage | 9.0 VDC ~ 15.0 VDC (max) |
| Volt Display Resolution | 0.1 VDC |
| Amps Draw Detection | Over 4.0 Amps will be depicted as 0.0 Amp (Power output will cut off) |
| Amp Display Resolution | 0.1 Amp |
| Internal Power Source | Re-chargeable 12 VDC Li-Ion battery (2000 mAh) |
| Optional Power Source | External 12V car battery |
| OBDII Connector Cable | 0.6 M*(Feature 2) |
| External Battery Cable | 1.1 M*(Feature 3) |
| Li-Ion Charger | Input: AC 100 V ~ 240 V, 50/60 Hz Output: DC 12.6 V, 1.0 Amp |
| Safety | Reverse polarity protected |
