Description
LEM1224150 SMART CHARGERS includes:

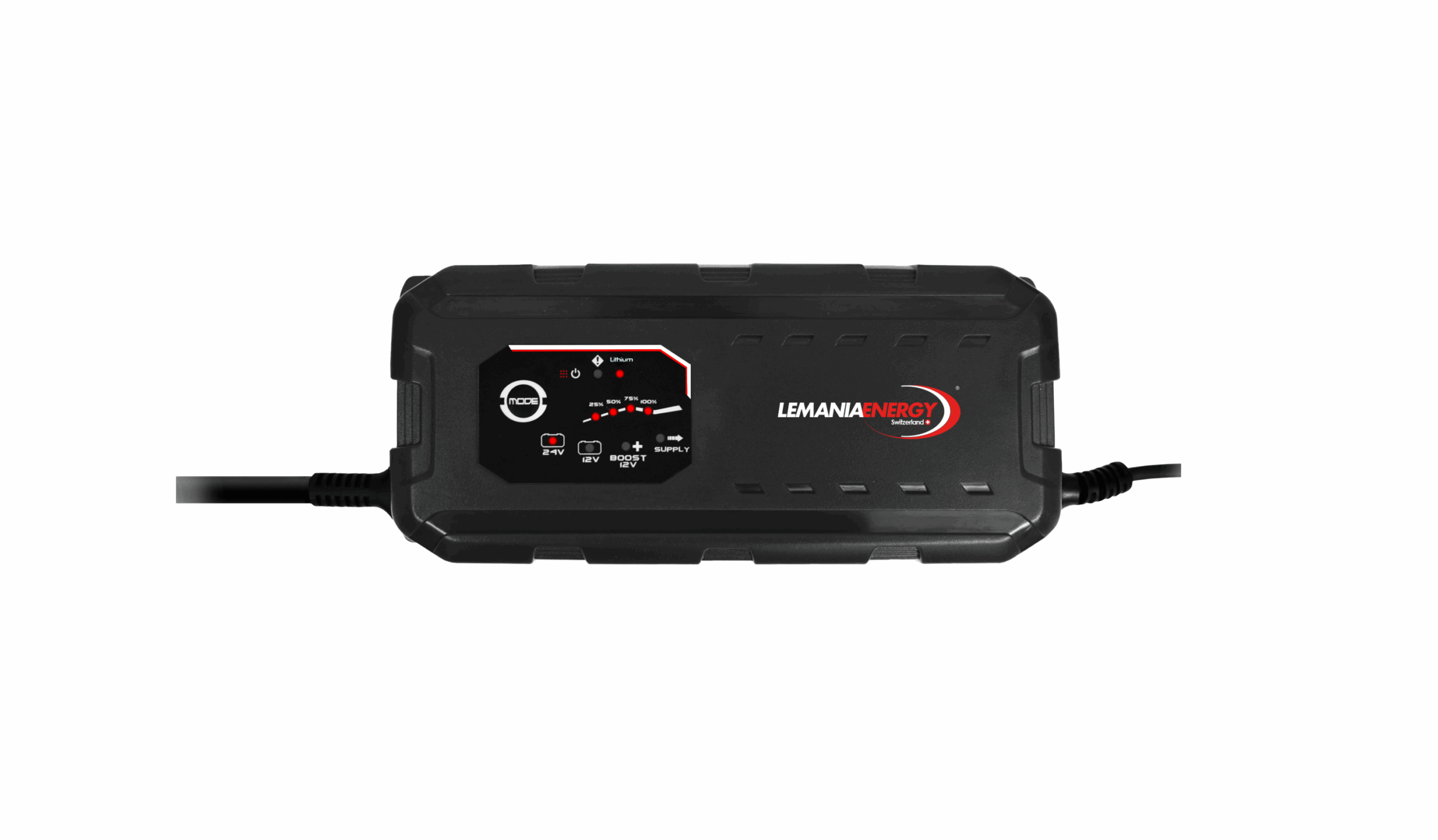

Maximize your battery power with the Lemania Energy LEM1224150 Battery Charger. Featuring advanced technology, this (12V) 15A smart charger and (24V) 7.5 A smart charger ensures fast and safe charging, extending the life of your battery. Ideal for keeping your vehicles and equipment reliably powered.
This charger is compatible with most SLA batteries with capacities ranging from 50Ah~450Ah; in 12V or 25Ah~230Ah in 24V, it may also be used with some WET, GEL and AGM etc. batteries. Before charging a battery, please refer to your batteries user manual or the manufacturers charging guidelines. Using a 7 step microprocessor controlled charging program, batteries can be recharged to almost 100% of their capacity and the charger can be left connected to the battery in maintenance mode for extended periods. The automatic ‘recondition’ mode can restore life into ‘dead’ batteries and help to break up the sulfate inside increasing their performance and capacity. The processor controls both the charging programs as well as the safety of the device as it waits for the battery to be correctly connected before charging.
Model |
Charging Amps (A) |
Volts |
Battery type |
CABLE LENGTH |
DIMENSIONS |
WEIGHT (kg) |
Vehicle Types |
|
|
15A(12V)/7.5A(24V) | 12/24V |
24V lead acid battery: 25Ah~230Ah 24V lithium battery: 25Ah~230Ah
12V lead acid battery: 50Ah~450Ah
12V lithium battery: 50Ah~450Ah |

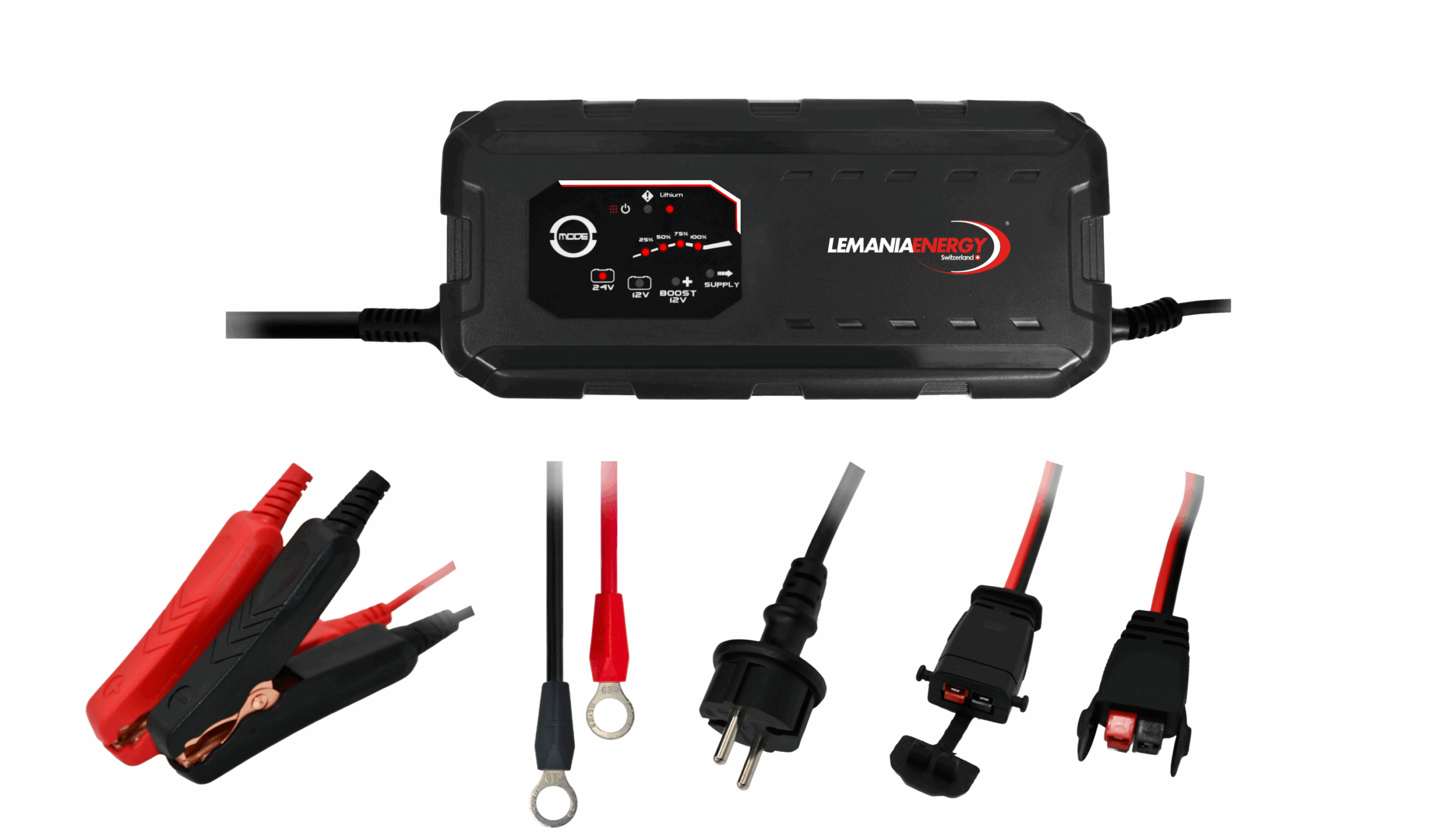

185 AC 135 DC*(without clamps/eyelets)
190 DC*(with clamps)
190 DC*(with eyelets) |
38x13x7 |
2.2*(without clamps/eyelets) 2.6*(with clamps/eyelets) |
|
| Feature | Details |
|---|---|
| Model | LEM 1224150 |
| Charging Amps (A) | 15A/7.5A |
| Voltage selection | Automatic |
| Battery type | 24V lead acid battery: 25Ah~230Ah 24V lithium battery: 25Ah~230Ah 12V lead acid battery: 50Ah~450Ah 12V lithium battery: 50Ah~450Ah |
| Min-Max capacity (Ah) | 25Ah~450Ah |
| Power consumption | 320W |
| IP Rating | X4 |
| Dimensions | 38x13x7 |
| Cable length (cm) | 185 AC 135 DC*(without clamps/eyelets) 190 DC*(with clamps) 190 DC*(with eyelets) |
| Unit weight (kg) | 2.2*(without clamps/eyelets) 2.6*(with clamps/eyelets) |
